Revolution 54 Plus Single Glazing

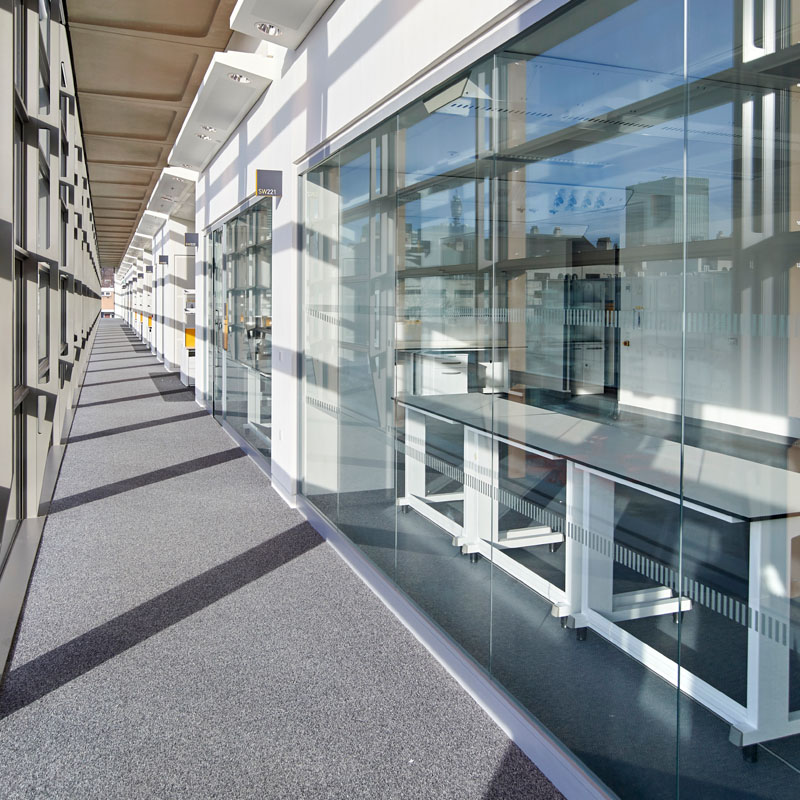

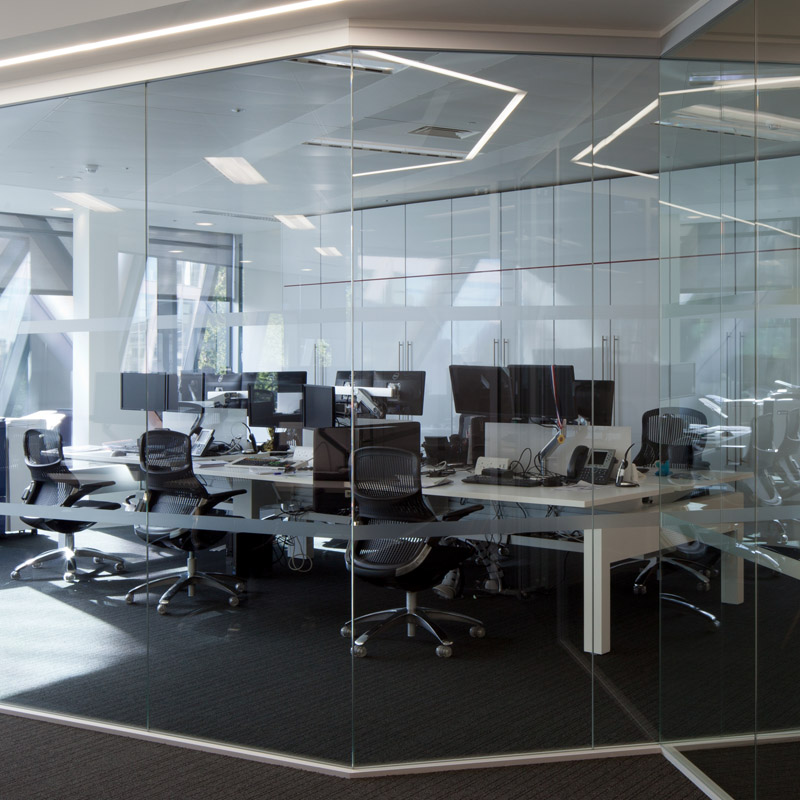

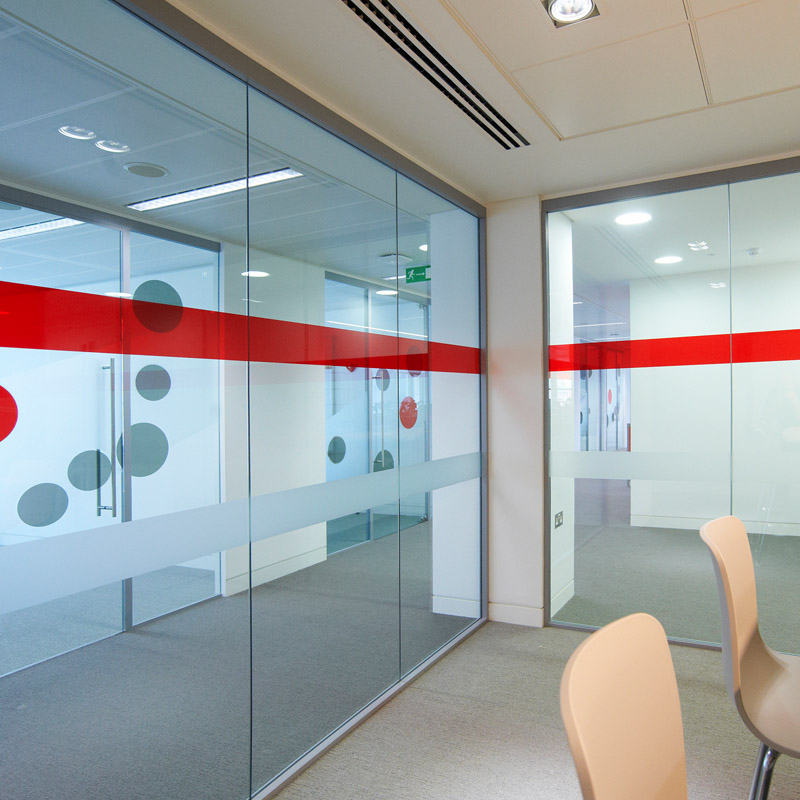

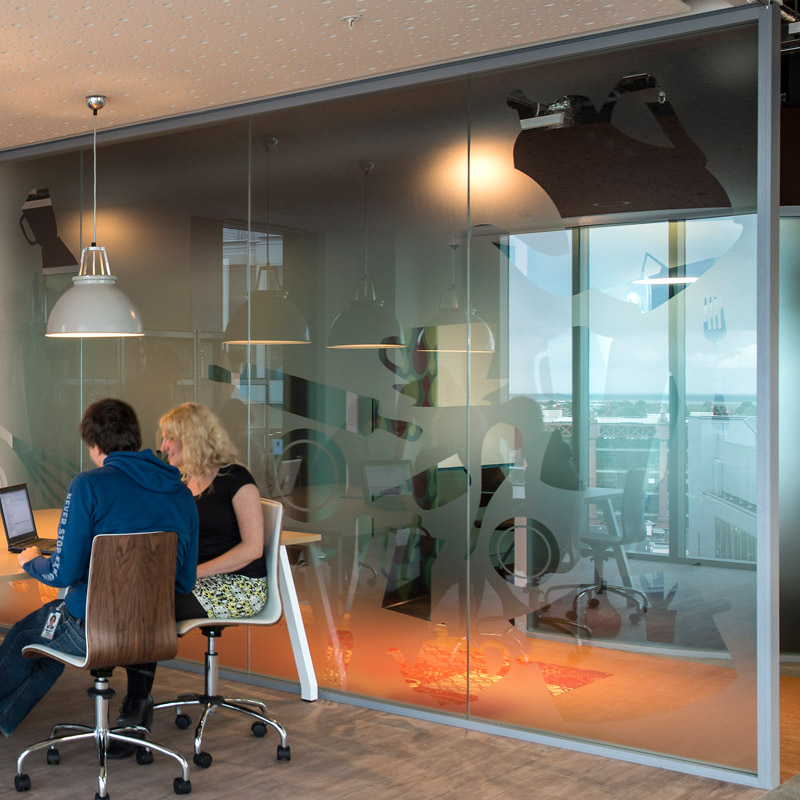

The excellent acoustic performance, aesthetic appeal and adaptability of Revolution 54 Plus make it one of our most popular systems. It can be single or double glazed and in its single glazed form the glazing can be offset or centred, to suit the desired aesthetic. See how Adobe use this system to create a colourful and exciting office at their HQ in Dublin.

Head Condition

Revolution 54 Plus single glazing is available in two distinct designs, distinguished by the height of the frame; either 54mm (w) x 25mm (h) or 54mm (w) x 50mm (h) extrusions. Outer deflection heads are available, to suit your design intent, and each style can accommodate up to +/-25mm or up to +/-40mm deflection.

Base Condition

The aluminium base channel can either be 25mm or 50mm deep, depending upon your desired aesthetic.

Panel Dimensions

Revolution 54 Plus single glazing can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics. Please contact our Technical Team to discuss the unique requirements of your scheme.

Interpanel Joints

The use of dry-glaze gaskets in the Revolution 54 Plus single glazed system makes it quick and easy to install, without compromising on durability, aesthetics or acoustic performance. A number of discreet glass to glass dry joints are available, including clear PETG, flush aluminium, taped, or our virtually invisible patented Nebula™ joint.

Acoustics

As with all of our products, the Revolution 54 Plus system is laboratory tested for acoustic performance in a UKAS accredited laboratory and full test reports are available upon request.



Revolution 54 Plus single glazing can achieve Rw33dB with 12mm toughened glass and Rw38dB with 12.8mm thick acoustic laminated glass. The acoustic test is conducted on a full height, multi-module screen with glazing joints and perimeter track-work; not simply a ‘window’ in a smaller sized opening. Testing samples using the latter method will generally give an artificially higher acoustic rating result and any results obtained in this way should be treated with great caution.

Doors

Revolution 54 Plus single glazing can integrate with any of our pivoting glass doors, along with 44mm thick timber doors and 54mm thick rebated timber doors.
